Product Overview

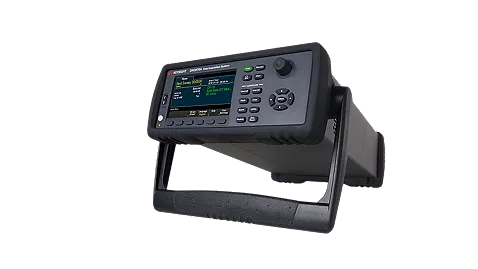

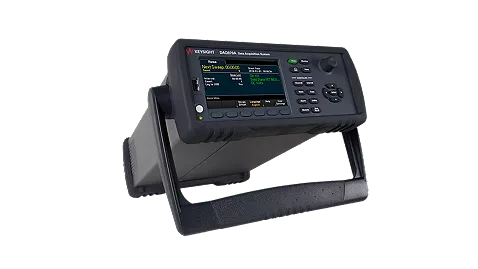

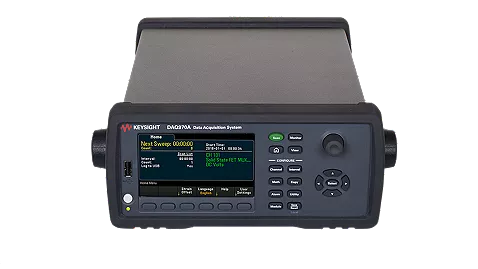

Get the next-generation data acquisition (DAQ) system with a three-slot mainframe and your choice of nine plug-in modules. Interface with the DAQ using Keysight BenchVue DAQ software or use the intuitive graphical front panel with task-oriented, self-guiding menus. The DAQ970A / DAQ973A data acquisition systems have high-quality switching and an advanced 6.5 digit multimeter built-in that allows you to measure accurately.

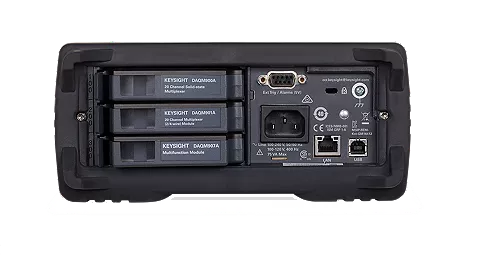

• 3-slot mainframes with built-in 6 ½ digit DMM
• Basic 0.003% DCV accuracy

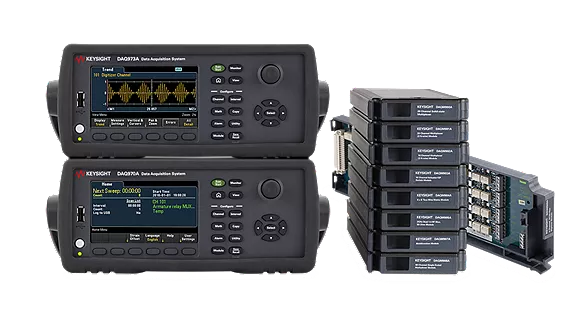

• 10 switch, RF and control plug-in modules, including a new 4-channel simultaneous sampling digitizer
• Up to 450 channel/s scan rate
• Up to 120 channels per system
• Up to one million points scanning memory
• Measures and converts 14 different input signals: Temperature with thermocouple, RTDs and thermistor; dc/ac volts; 2- and 4-wire resistance; frequency and period; dc/ac current and capacitance; direct strain and bridge strain

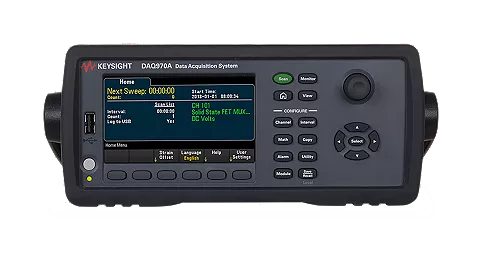

• Large 4.3” color display for ease of setup and viewing data
• LAN and USB for easy connectivity to your PC (DAQ973A comes with additional GPIB)
• Code compatible with the 34970A/34972A
• USB flash drive support to copy/log data in standalone applications
• BenchVue DAQ with enhanced time/frequency domain measurement

Key Features

There Is No Comparison What can you expect from a data acquisition system that is this affordable? Measurements you can trust. The powerful measurement performance, flexibility, connectivity options, cost factor, and ease-of-use of the DAQ970A/ DAQ973A combine to outpace all other data acquisition systems — even in systems costing three to five times as much. Built-in signal conditioning Standard PC connectivity Convenient data storage with USB flash drive Virtual front-panel control via the BenchVue web interface Custom configurations that grow with you

PathWave BenchVue Data Acquisition Software Instantly control your data acquisition units to log and visualize results in a variety of display options for easier analysis. Control measurement channels for your specific test configurations from multiple data acquisition units. Use the various waveform measurement operations in the time domain chart. Capture total harmonic distortion (THD), THD plus noise, and signal-to-noise and distortion (SINAD) measurement operations in a fast Fourier transform (FFT) chart. Create automated test sequences quickly with minimal instrument knowledge.

The DAQ970A and DAQ973A data acquisition systems are high-performance modular instruments from Keysight Technologies, with typical applications spanning multiple fields:
1. Industrial Manufacturing and Automated Testing
       •  Production Line Monitoring: Real-time monitoring of parameters such as temperature, pressure, and current on production lines to ensure process stability. For example, used in automotive manufacturing for engine performance testing, chassis dynamometer inspection, and electronic system evaluation.
       •  Component Inspection: Screening, aging testing, and fault diagnosis of electronic components — such as monitoring soldering temperatures on circuit boards or analyzing power voltage fluctuations.
       •  Quality Control: Achieve automated testing through multi-channel independent configuration (e.g., thermocouples, RTDs, voltage measurements), improving product consistency.

2. Energy, Power, and New Energy Systems
       •  Power Generation Equipment Monitoring: Collects parameters such as temperature, voltage, and current from generators, transformers, and other equipment in power plants and substations, supporting predictive maintenance.
       •  New Energy System Management: Monitors PV panel efficiency, wind turbine operating status, and grid connection parameters in solar and wind farms.
       •  Power System Fault Diagnosis: Locates grid anomalies using high-precision measurements (e.g., 0.003% DC voltage accuracy).

3. Scientific Research and Education
       •  Multi-Disciplinary Experiments: Captures dynamic data in physics, chemistry, and biology experiments — such as temperature changes during chemical reactions or bioelectric signals.
       •  Educational Applications: Used in experimental teaching for electronics and automation majors to help students understand the principles of data acquisition and analysis.
       •  Material Characterization: Studies new material properties through measurements of parameters like stress and capacitance.

4. Medical Devices and Clinical Monitoring
       •  Medical Instrument Calibration: Tests performance parameters of devices such as sphygmomanometers and ECG machines to ensure accuracy.
       •  Patient Physiological Data Acquisition: Real-time monitoring of vital signs such as body temperature, heart rate, and blood oxygen levels, supporting telemedicine and health management.

5. Environmental Monitoring and Industrial Safety
       •  Weather and Pollution Monitoring: Collects data such as air temperature, humidity, and pollutant concentrations for environmental quality assessment and early warning systems.
       •  Industrial Emission Monitoring: Tracks key parameters in wastewater and exhaust emissions (e.g., pH value, particulate concentration) to ensure compliance with regulatory standards.

Technical Advantages Enabling Application Scenarios
       •  Modular Expandability: Supports flexible configurations from 4 to 120 channels, and can integrate actuators, digital I/O modules, and more to meet complex requirements.
       •  High Precision and Reliability: 6½-digit resolution, 0.003% DC voltage accuracy, and non-volatile memory (up to 1 million readings) ensure accurate and reliable data capture.
