Product Overview
1435 series signal generator is designed based on innovative technology, achieving an optimal balance among performance, cost-effectiveness, and compact size and weight.
It delivers excellent spectral purity, with single sideband phase noise as low as:
-
-136dBc/Hz at 1GHz carrier with 10kHz offset
-
-116dBc/Hz at 10GHz carrier with 10kHz offset
The instrument also features high output power and a wide dynamic range, offering a maximum output power of 20dBm @20GHz, with a dynamic range exceeding 150dB.
Equipped with fast frequency switching, 1435 achieves a switching time of 1 ms, significantly reducing test time and improving testing efficiency—ideal for high-volume data testing. It supports high-performance analog modulation and pulse modulation functions.
Utilizing advanced frequency synthesis and RF channel signal processing technologies, 1435 achieves high performance while effectively lowering cost.

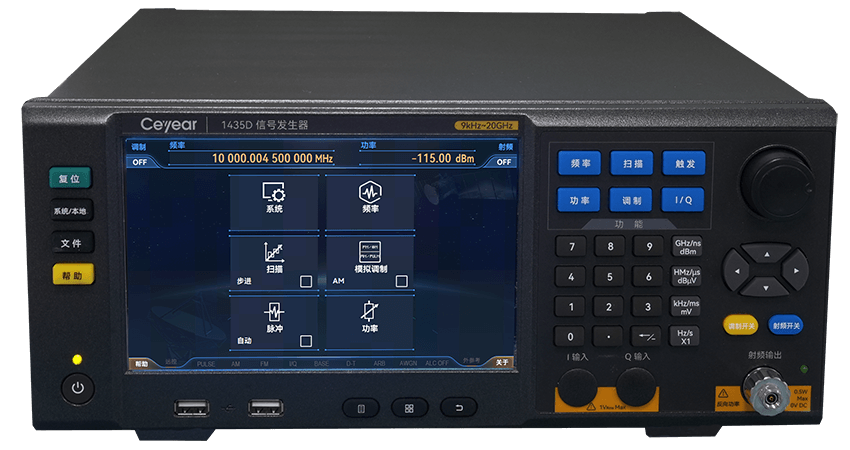

The instrument is equipped with a 7-inch high-sensitivity touch LED screen, and supports multiple operation methods including touchscreen, front panel keys, rotary knob, and external mouse or keyboard, providing a fully upgraded user experience.

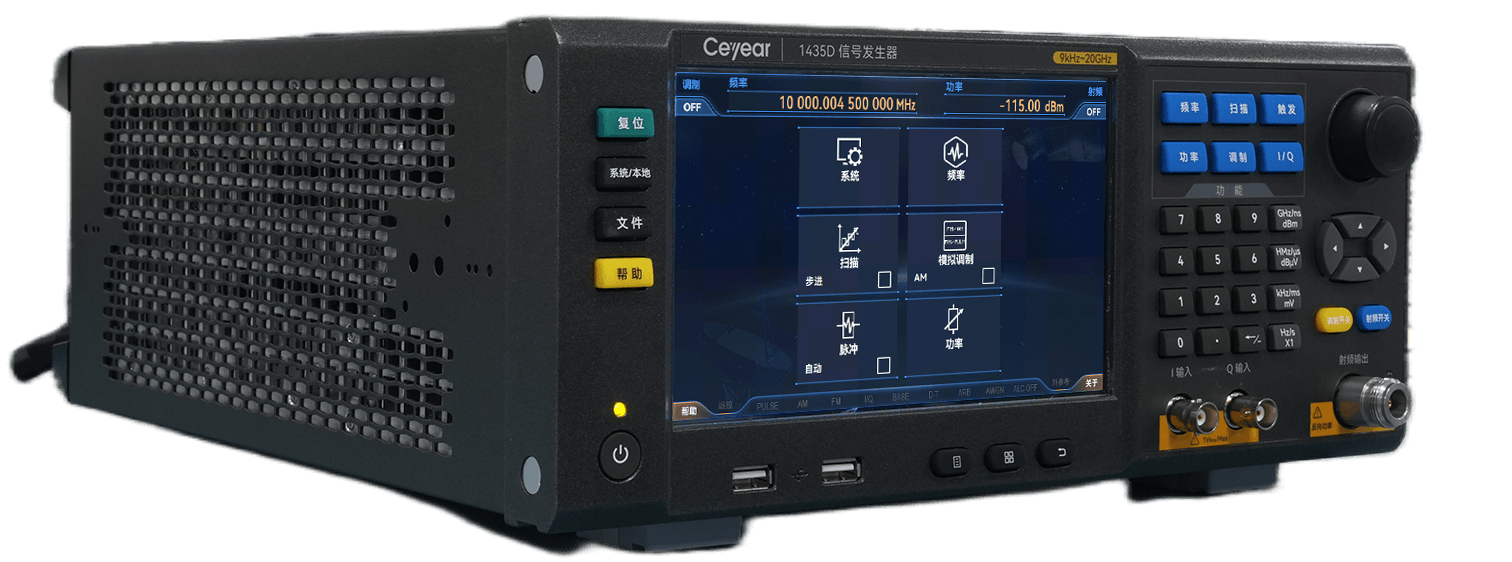

Designed with a 3U portable chassis, it features a compact footprint and lightweight structure, making it easy to carry.
1435 series signal generator satisfies both high-performance testing requirements during R&D and high-efficiency testing demands in production environments.
Key Features
|
Wide Frequency Coverage
1435A/B/C/D/F signal generators offer a frequency range from 9kHz to 3GHz/6GHz/12GHz/20GHz/40GHz. The entire series provides a low starting frequency of as low as 9kHz and a high-end frequency of up to 40GHz, meeting the requirements of wideband testing applications.
|
High Output Power

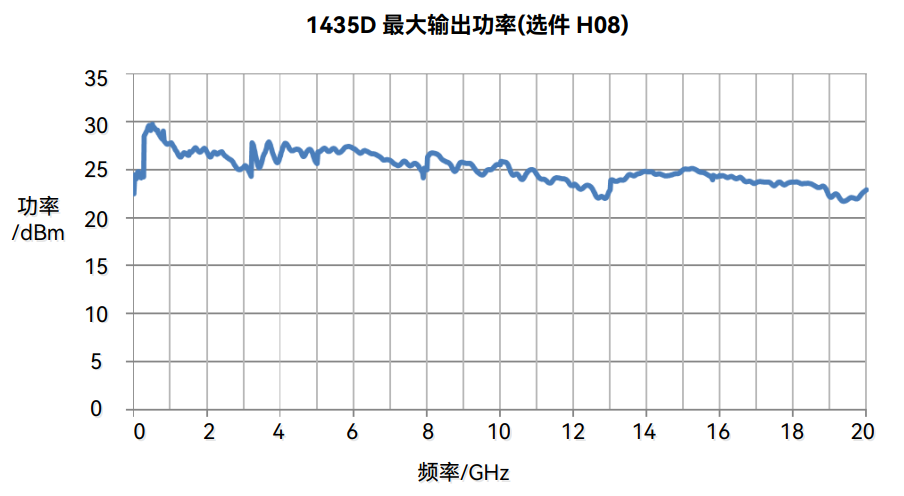

By selecting the H08 high-power output option, 1435A/B/C/D models deliver a measured output power of over 20dBm across the entire frequency range, while the 1435F provides over 17dBm. In test scenarios requiring high-power excitation signals, 1435 series can generate the desired test signal without the need for an external amplifier.
|
|
|
Excellent Single Sideband Phase Noise

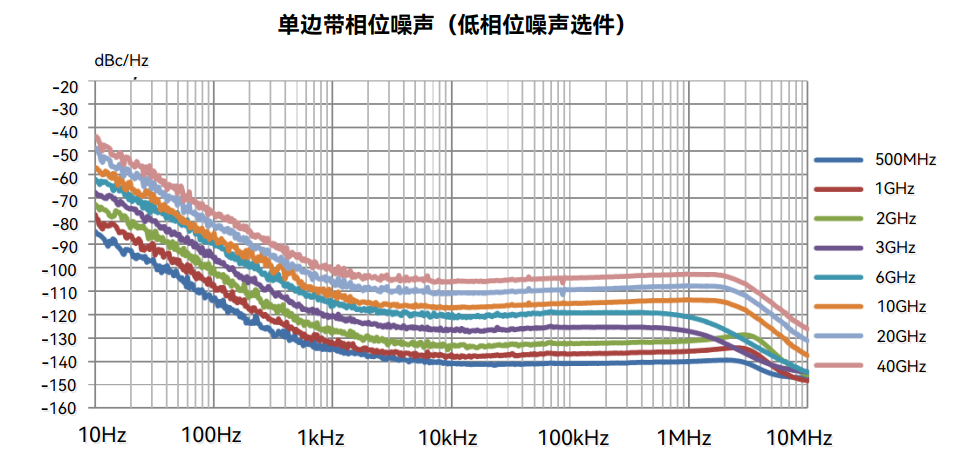

1435 series signal generator offers two selectable phase noise modes. The standard mode achieves a measured single sideband phase noise of -101dBc/Hz at 10GHz @10kHz offset, while the optional low-phase-noise mode reduces this to as low as -116dBc/Hz at 10GHz @10kHz offset. Users can select the appropriate phase noise level based on actual requirements, achieving an optimal balance between performance and cost-effectiveness.
|
Extremely Short Frequency Switching Time

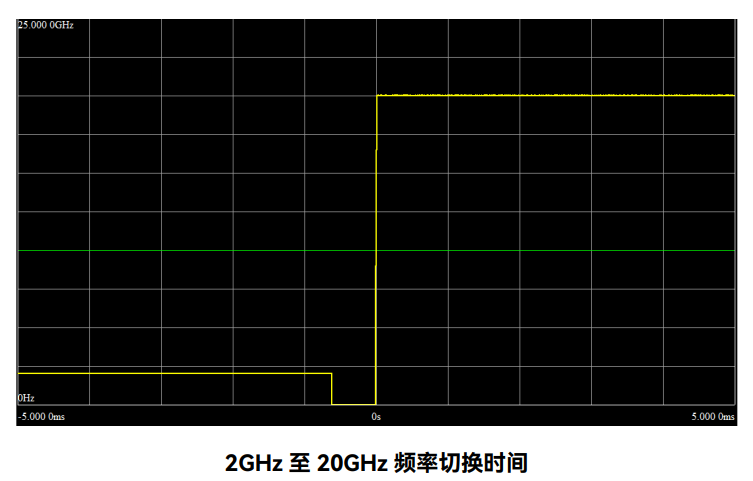

1435 enables fast frequency switching across the entire frequency range, with a measured switching time of 0.67ms, meeting the demands of high-speed testing applications.
|
|
|
High-Performance Pulse Modulation

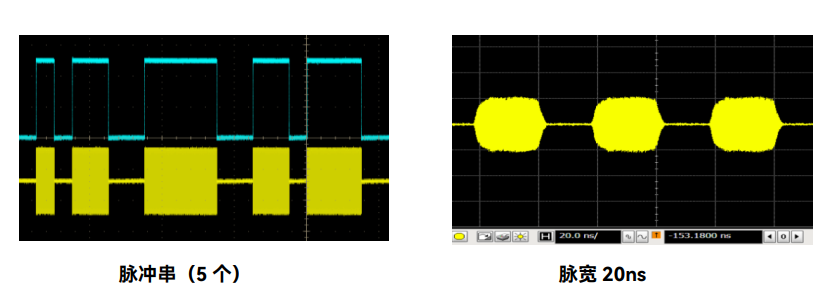

The instrument offers a pulse on/off ratio greater than 80dB, with rise and fall times of less than 10ns. When equipped with the narrow pulse option H04, the minimum pulse width can be as low as 20ns, with a pulse width range of 20ns to 42s–10 ns and a step size of 10ns. It supports various triggering methods, including gated triggering and external triggering, and also provides a pulse train function required for testing.
|
Multifunction Function Generator
The multifunction function generator consists of seven waveform generators, used to generate AM/FM/ΦM modulation signals and low-frequency output signals.
Among them, two waveform generators can be internally summed to generate dual-tone modulation signals for AM/FM/ΦM applications.
The seven waveform generators include:
-
2 x standard function generators
-
1 x dual-function generator
-
1 x sweep function generator
-
2 x noise generators
-
1 x DC generator
The DC generator produces a DC level and is only applicable to low-frequency output.

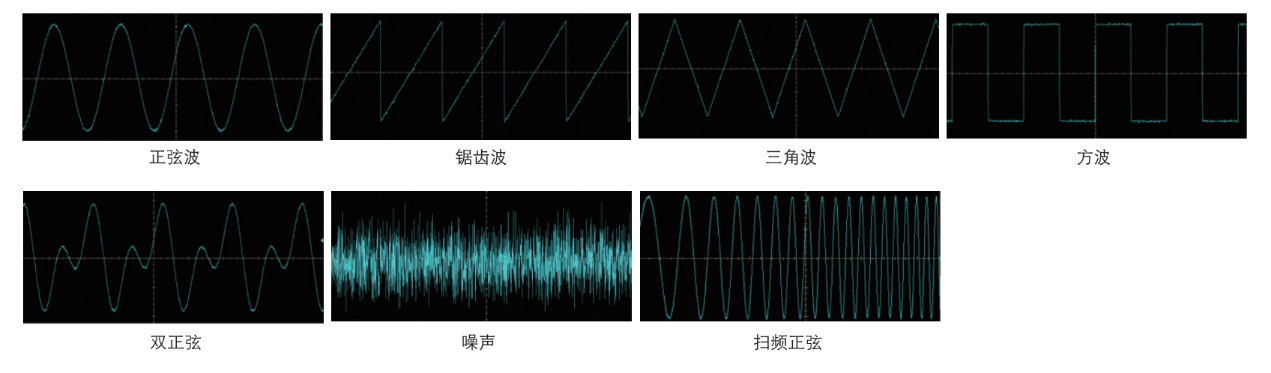

The sine wave frequency range of the waveform generators is 0.1Hz to 10MHz, while the triangle wave, square wave, sawtooth wave, and pulse wave have a frequency range of 0.1Hz to 1MHz, with a frequency resolution of 0.1Hz.
|
|
High-Sensitivity LED Touchscreen

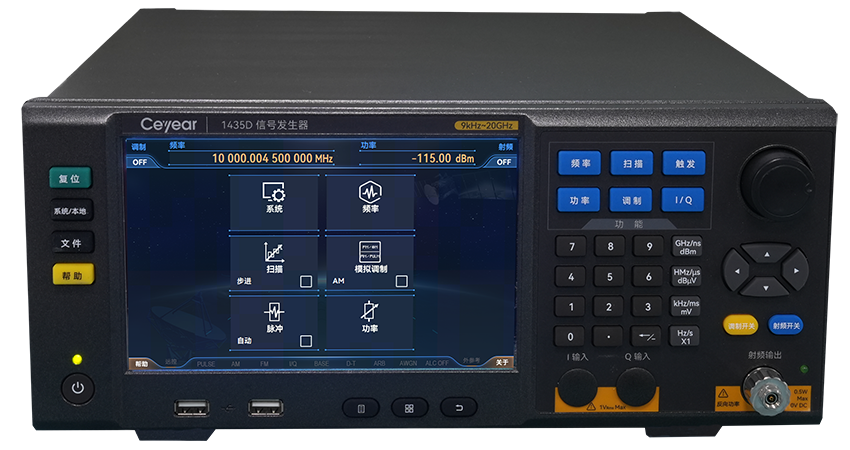

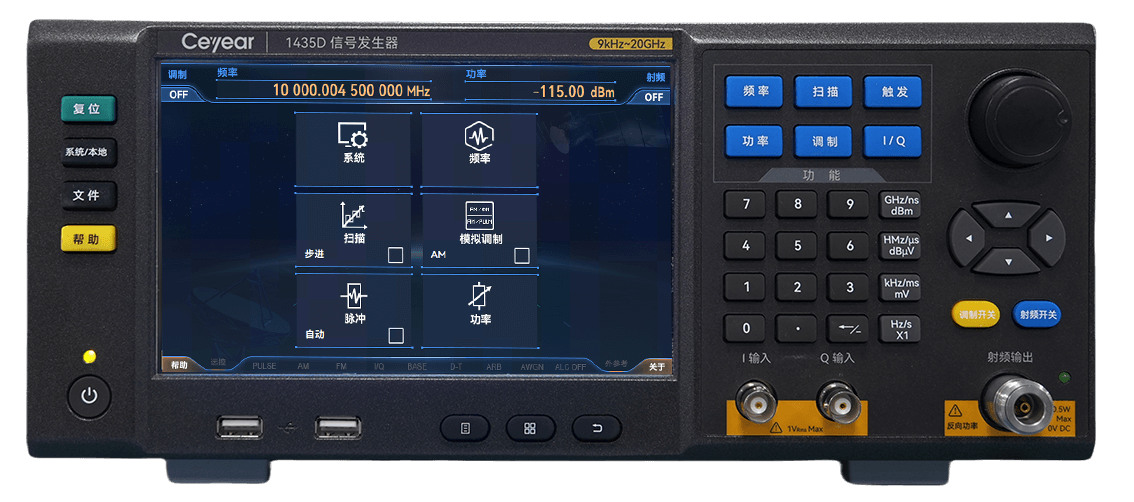

The instrument features a 7-inch wide LED display with a resolution of 800×480 pixels, clearly presenting device status information. The capacitive touchscreen, combined with a custom-designed user interface, ensures sensitive and accurate touch response. In addition to touchscreen control, the instrument can also be operated via front panel keys, a rotary knob with enter function, or an external keyboard/mouse, offering users convenient and flexible operation options.
Compact and Lightweight Design

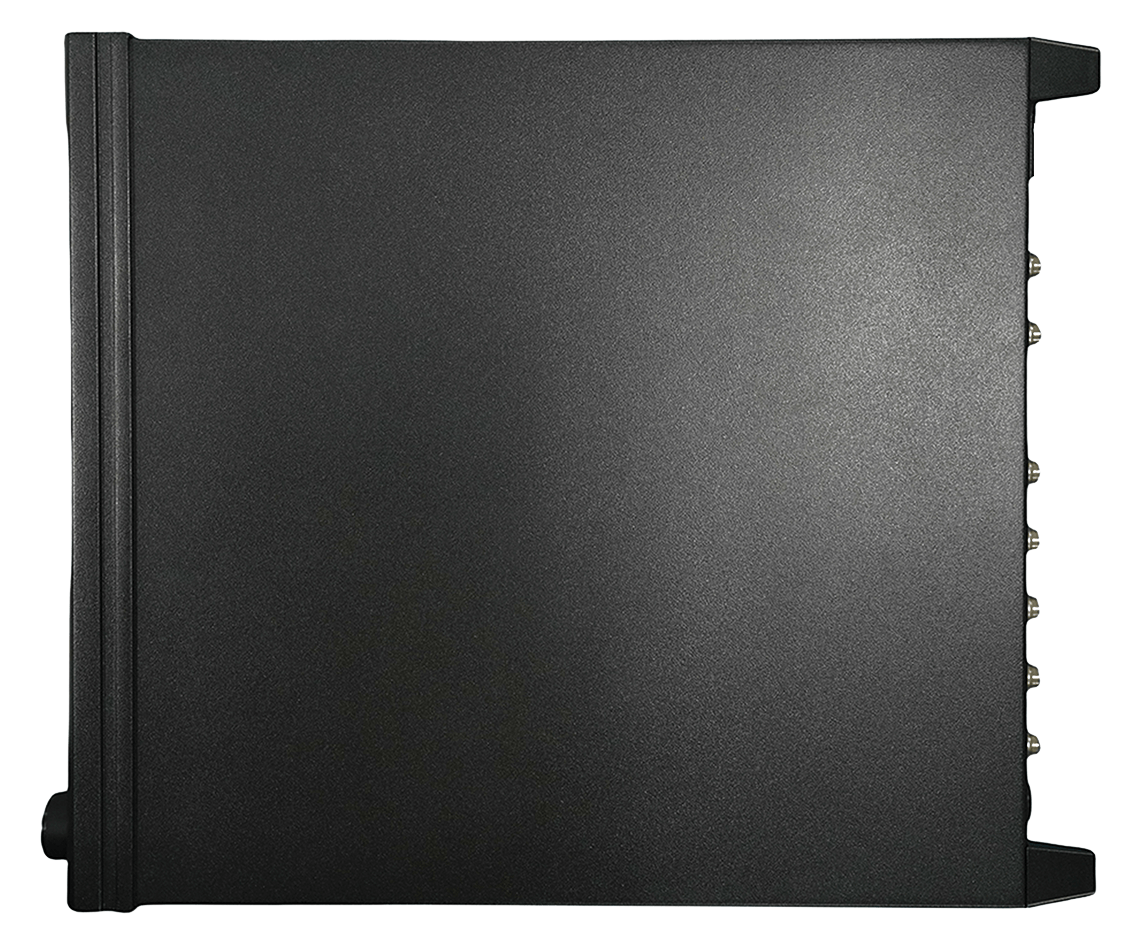

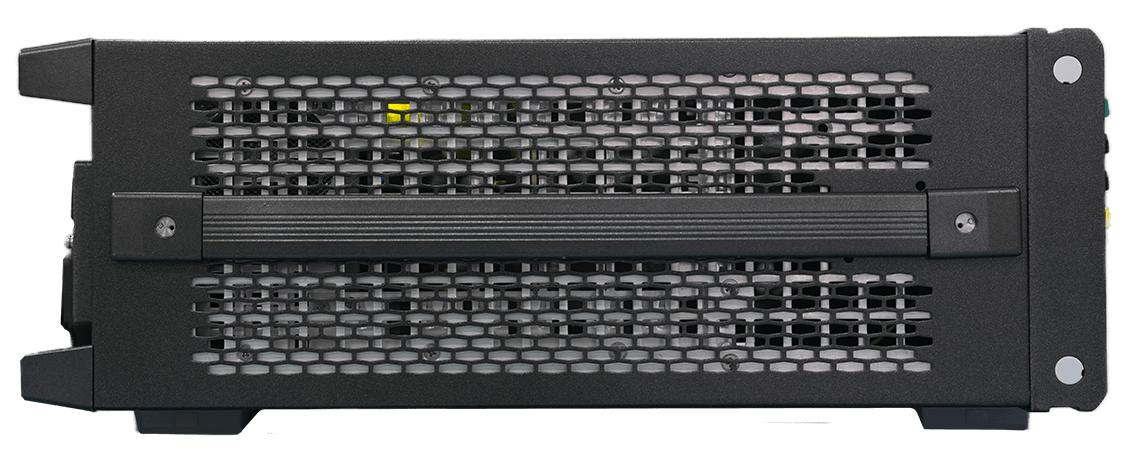

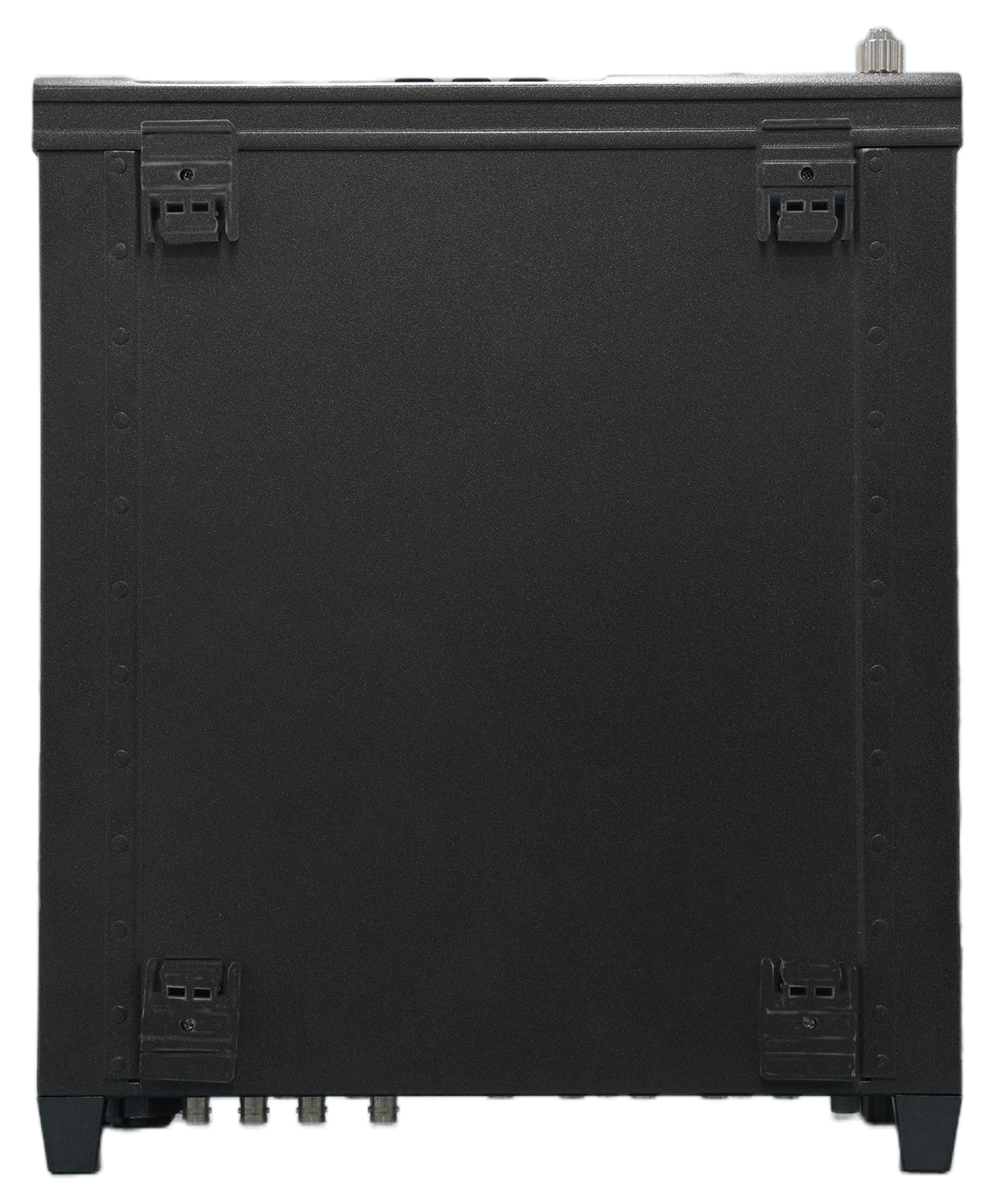

Adopting a 3U portable chassis design, 1435 series significantly reduces both size and weight compared to traditional benchtop instruments. The heaviest model weighs only 10.9kg, while the lightest model is as low as 7.4kg, making it highly portable and suitable for various application environments.
|
General Testing
1435 series signal generator is feature-rich, offering a wide frequency range from 9kHz to 40GHz, and supports AM, FM, ΦM, and PM analog modulation functions, as well as step sweep and list sweep modes. With its balanced design of performance, cost-effectiveness, and compact size, along with flexible configuration options, 1435 is widely applicable across various fields. It provides cost-effective solutions suitable for educational testing, while also delivering high performance ideal for laboratory testing.
Field Testing
1435 series signal generator features high-performance pulse modulation, with a pulse on/off ratio greater than 80dB, rise/fall times less than 10ns, and a minimum pulse width of 20ns. It supports various pulse patterns such as PRI stagger, PRI jitter, and pulse trains, making it suitable for system-level testing. Its excellent phase noise performance makes it ideal for receiver testing. The compact and lightweight design ensures convenient portability, making it well-suited for field testing applications.
Production Line Testing

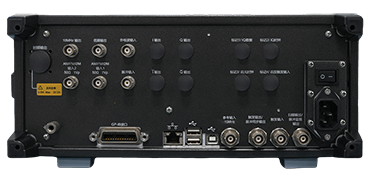

With a frequency switching time of 1ms, 1435 significantly reduces test time and improves efficiency, meeting the demands of high-volume data testing. Its high output power eliminates the need for external power amplifiers, saving both space and cost. The instrument supports multiple control interfaces including LAN and GPIB, facilitating integration into automated test systems. These features make it an ideal choice for production line testing.
