Product Overview

Driven by ever increasing 5G data demands and the performance requirements for AI workloads, the adoption of high-speed Ethernet continues to surge. As does the challenge of verifying packet synchronization for network equipment.

Building on the pedigree of the Calnex Paragon family, Paragon neo-S is the new, cutting-edge test solution for synchronization testing up to 800G. It’s designed for the stringent test requirements of enhanced 5G and O-RAN timing standards as well as the developing requirements driving operational efficiencies in data centers.

What’s more, because high network efficiency and reduced data transmission costs are only possible with highly accurate timing, Paragon neo-S offers hardware performance and software test methodologies allowing sub-nanosecond accuracy for the entire test system.

Paragon neo-S also offers unequalled compatibility. With step changes in physical layer technology needed for 800GbE, a new generation of pluggable optical transceivers are being created. Paragon neo-S not only meets the challenge of synchronization testing at 800G, but with the next generation of transceivers too.

Key Features

PTP Field Verifier (PFV)

Analyze PTP protocol for conformance to standards or user defined profiles.
Automatic pass/fail indication – check captured PTP messages against a pre-defined set of rules, with clear pass/fail alerts.

Conformance Test Application

Start testing in seconds – just two clicks to configure crucial standards-defined test sequences.
Automatically generates PTP and ESMC messages, Time Error and SyncE impairments, and applies filters, metrics and masks.

Analyze the Time Error (TE) of, for example, Class-C/D T-Boundary Clocks or Class-B PRTC/Master Clocks.
Apply standards-defined Time Error impairments.
Combine with SyncE and ESMC for complex tests such as Phase Noise Response to SyncE Transient.

Full suite of PTP and SyncE wander testing

Simultaneously test PTP Time Error/SyncE wander and measure output packet timing, recovered clocks and SyncE wander, with unbeatable test accuracy and repeatability across rates, even up to 800GbE.

Application		Standard
Boundary Clock Testing		ITU-T G.8273.2
Transparent Clock Testing		ITU-T G.8273.2
APTS Clock Testing		ITU-T G.8273.4
PRTC Testing		ITU-T G.8272
time Receiver Testing		ITU-T G.8273.2
eEEC/EEC Testing		ITU-T G.8262.1/G.8262

The Calnex Analysis Tool (CAT) provides powerful insight into network and device performance. All your measurement results are now in one place, and you can view multiple graphs simultaneously for easier correlation of your results. Plus, with enhanced graphics, it’s easy to valuate metrics such as MTIE and TDEV against ITU-T and O-RAN masks.

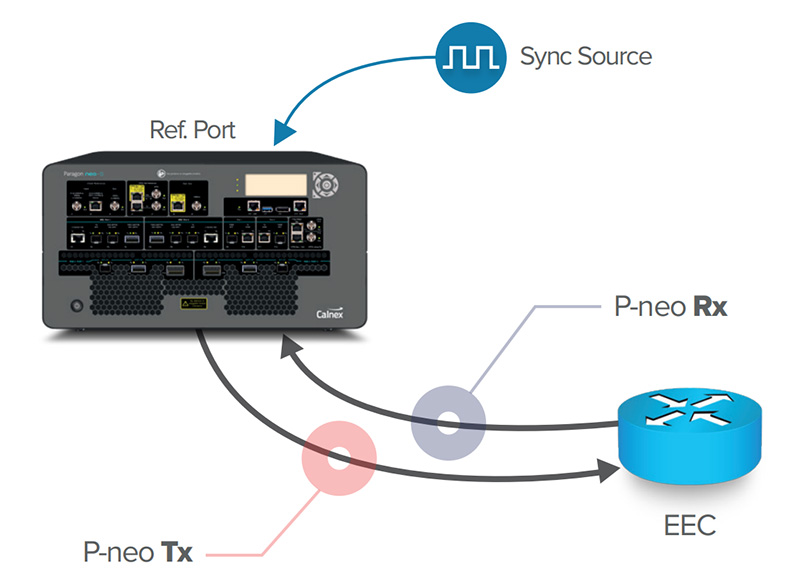

SyncE Applications – ITU-T G.8262.1/G.8262 (Wander)

The Paragon neo-S supports full SyncE testing to ITU-T G.8262.1/G.8262 including Wander Tolerance, Wander Transfer, Wander (Noise) generation, Pull-in, Hold-in and Pull-out ranges, Frequency Accuracy and Phase Transient.

Application	P-neo Tx	P-neo Rx
SyncE Wander (noise) Generation	Wander free	Measure Wander
SyncE Wander (noise) Tolerance	Apply Wander	Check ESMC
SyncE Wander (noise) Transfer	Apply Wander	Measure Wander
SyncE Short Term Phase Transient	Break line or set ESMC QL=DNU	SyncE TIE, MTIE

Key Parameters

PTP Performance Summary		SyncE Performance Summary
Capture and decode PTP packets for analysis and Time Error testing PTP clock emulation, plus the Paragon neo-S’ unique conformance test application, removes uncertainty and maximizes test repeatability – essential for validating new, high accuracy 5G network devices Automatic test of PTP profile compliance for simple and reliable verification against standards-based or user-defined profile configurations		Prove SyncE wander performance to ITU-T G.8262.1/G.8262 Evaluate MTIE/TDEV pass/fail results to ITU-T G.8262.1/G.8262 masks Check ESMC (SSM) messaging to ITU-T G.8264

	Product
Interfaces (all optional)	Phase #1 QSFP112-DD – 800G OSFP112 – 800G Phase #2 SFP112 – 100G QSFP112 – 400G Phase #3 All rates currently available on Paragon-neo.
External Reference Clocks	Lock internal timing reference to external reference. External reference inputs: 64 kHz, 2.048 MHz, 10 MHz, T1 BITS clock (1.544 Mb/s), E1 MTS (2.048 Mb/s).
Internal Reference Clock	Frequency stability over temperature – better than ±1 x 10-9. Short term phase stability – better than 500 ps.
Clock Reference Output Port	10 MHz/2.048 MHz Reference Output (BNC).
Phase Measurement	1PPS – BNC (unbalanced). 1PPS – RJ (balanced).
Frequency measurement	BNC (unbalanced). RJ48 (balanced).
1 PPS + ToD Reference Input	1PPS Unbalanced Input (BNC), 1 pps Balanced Input + ToD (RJ48C). ToD format: CCSA, ITU-T, NMEA.
1 PPS + ToD Reference Output	1PPS Unbalanced Output (BNC), 1 pps Balanced Output + ToD (RJ48C). ToD format: CCSA, ITU-T, NMEA.
	General
PC/Mac or Tablet Control Interface	Web-based GUI with built-in controller enables use of any PC or Android Tablet with any browser with screen resolution of 1024 x 768 pixels. RJ 45 LAN connection to instrument.
Workflow	Graphical test-case driven workflow with real-time status and results. Stimulus/Response test configuration tool. Detailed configuration options also available.
Remote Control	Scripting via TCL, Perl and Python. Automatic Script Recorder for TCL and Python. Compatible with Calnex Test Sequencer (CTS) for creation/use of specific or user-defined test plans.
	PTP
Standards	IEEE 1588 G.8273.2 including Class-C and Class-D devices. G.8272 including Class-B devices. All relevant G.826x/827x standards.
PTP Time Error Measurement Accuracy	Better than 1 ns for NRZ Optical interfaces. Better than 5 ns for PAM4 optical interfaces and electrical interfaces.
timeTransmitter/timeReciever Emulation	Emulate PTP timeTransmitter with full parametric control. Emulate PTP timeReceiver. Add Time Error patterns e.g. G.8273.2, G.8271.1, G.8271.2, G.8261, user-defined.
Time Error Metrics	Built-in (CAT) software including industry-standard ITU-T pass/fail masks with clear pass/fail indication. Time Error (2Way and 1Way) – packet selection and filtering as per ITU-T specifications cTE, dTE, etc.
PTP Packet Analysis	Decode and display PTP Fields with PFV. (Additional options with full PFV licence: Display pass/fail to standards-based or user-defined rules; report generation capability.)
	SyncE
Wander Measurement	ITU-T G.8262.1, G.8262 and O.174. Wander Generation, Wander Transfer, Wander Tolerance, Phase Transient, built-in frequency offset plus generation of sinusoidal, MTIE and TDEV Wander.
Wander Analysis	Built-in (CAT) software including industry-standard ITU-T pass/fail Masks with clear pass/fail indication. ITU-T Masks: G.8261, G.8262, G.8262.1, G.8261.1 Wander Measurements: TIE, MTIE, TDEV, clock FFO.
ESMC (SSM) Features	Decode ESMC messages to ITU-T G.8264 and graph/plot Quality Level (QL) changes graphically (bi-directional). Generate ESMC (SSM) packets as per ITU-T G.8264. Enhanced SSM fully supported.
Phase Wander Measurement Resolution	250ps
